ECA Cove Series Surface Mount Corded Power Module

Model:
ECA-COV-2U-GW-108
Brand:
ECA
$348.00 $249.00
(You save $99.00 )

Always Free Shipping

Ships in 6 weeks

Current Stock:
Adding to cart… The item has been added

ECA’s Cove™ Corded Series is a charging solution designed to seamlessly integrate power, USB charging ports, and data capabilities into a variety of spaces. Spill-resistant receptacles protect the inset power outlet against unexpected hazards and provide freedom to mount the Cove unit face-up on table surfaces. The outlet and data receptacles are strategically oriented to optimize the surface area of each unit, accommodating large and small device plugs. This surface-mounted power outlet can be ordered in 2- or 3-power outlet models with 2 USB ports in 4 available finishes. *Units are recessed into the surface, so please double-check your cutout size!

  • Inset two- or three-power outlet models, both with 2 USB ports (see images)
  • Mounts to surface thicknesses: .25”-1.25”
  • Two 12A, 120 VAC spill-resistant receptacles
  • Two 2.1A (10.5W) USB charging ports
  • Cord Length: 108”
  • 90º Flat Plug with 45º Rotation
  • 4 Standard Faceplate Powder Coat Finishes
  • ETL Listed

Finishes: Silver, Black (Textured), White, Bronze, Latte, Carbon, Brushed Aluminum



Dimensions

  • 2 outlet model cutout hole is 2.0"W x 5.25"L (see schematics below)
  • 3 outlet model cutout hole is 2.0"W x 7.25"L

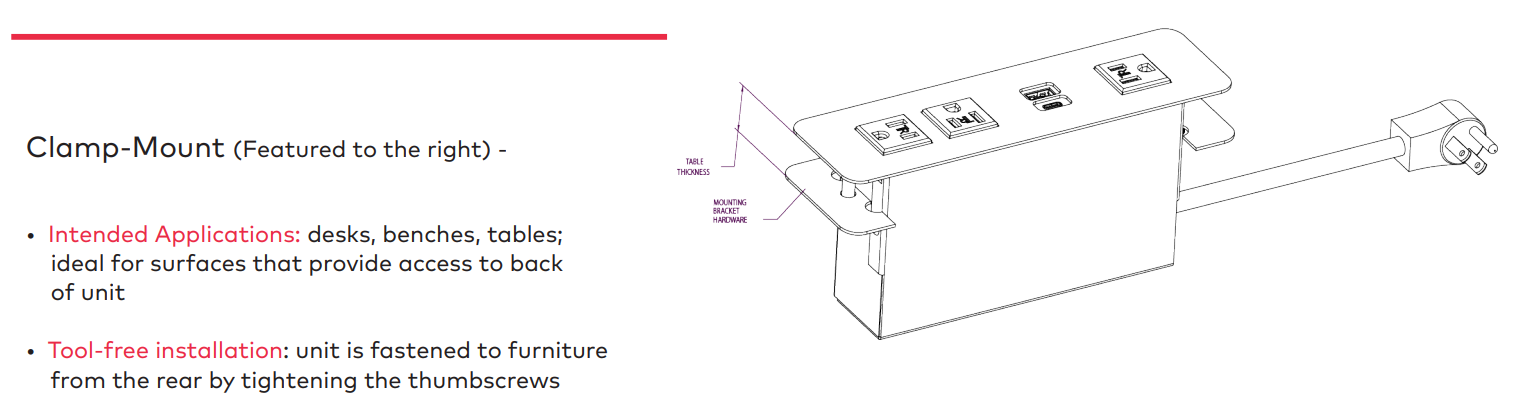

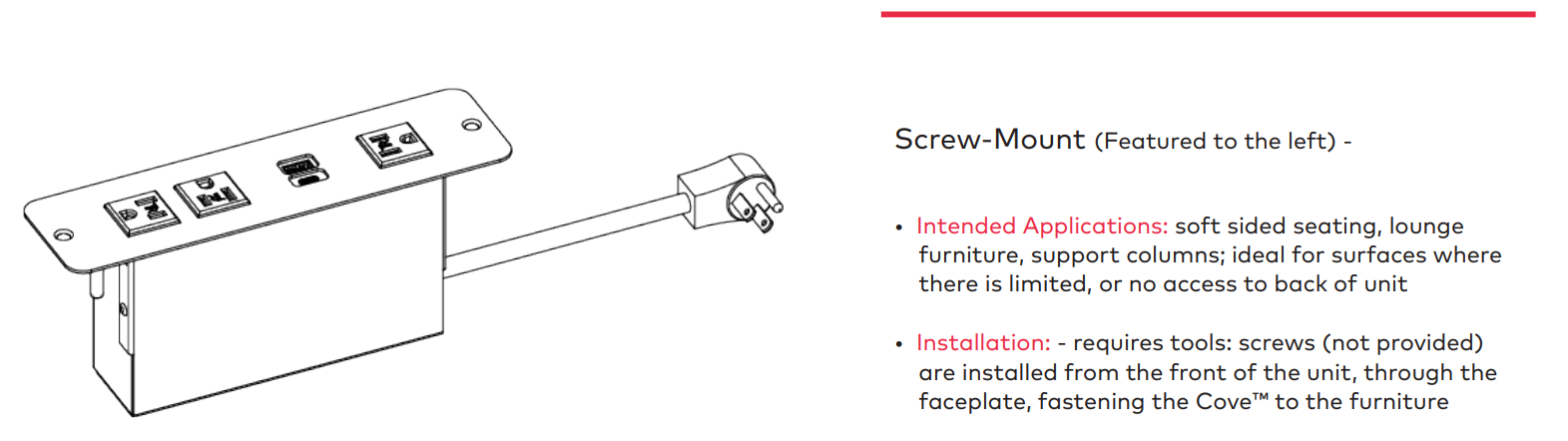

*Note that this drawing below, shows the 1 outlet model ONLY; dimensions are for the 2 or 3 outlet models

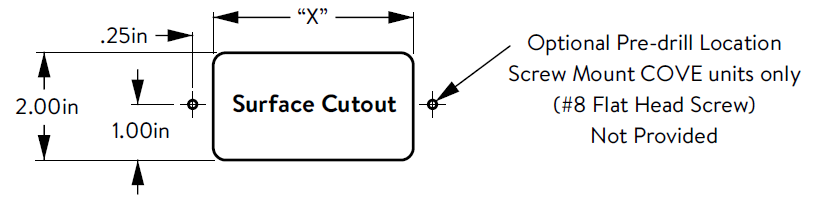

Cutout and Installation Specs









Overall Dimensions 2 Outlet:
2.5"W x 5.75"L x 3.18"H
2 Outlet Model Cutout Hole:
2.0"W x 5.25"L
Overall Dimensions 3 Outlet:
2.5"W x 7.75"L x 3.18"H
3 Outlet Model Cutout Hole:
2.0"W x 7.25"L
Mount Fits Surface Thickness:
.25”-1.25”
ECA Warranty Policy ELECTRI-PAK Modular Electrical Products Electri-Pak products are warranted for a period of one year from the date of purchase. Electri-Pak products must be installed by a licensed electrician, in the manner it was intended to be used. This warranty is null and void in the case of abuse, uses outside its normal intended use, or field modifications made in any manner. Power/Data Worksurface Products Work surface products are warranted for a period of one year from the date of purchase. This warranty is null and void in the case of abuse, uses outside its normal intended use, or field modifications made in any manner.
